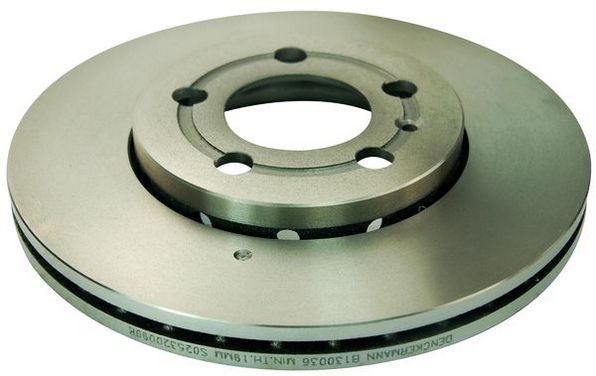

Brake Disc

B130036 Catalog no:

Manufacturer: DENCKERMANN Outer Diameter [mm] : 256,0 Brake Disc Thickness [mm] : 22,0 Minimum thickness [mm] : 19,0 Brake Disc Type : Vented Number of Holes : 5 Bolt Hole Circle Ø [mm] : 100,0 Height [mm] : 36,7 Centering Diameter [mm] : 65,0 Inner Diameter [mm] : 133,5 Bore Ø [mm] : 15,6

Additional information

Description

Outer Diameter [mm] : 256,0 Brake Disc Thickness [mm] : 22,0 Minimum thickness [mm] : 19,0 Brake Disc Type : Vented Number of Holes : 5 Bolt Hole Circle Ø [mm] : 100,0 Height [mm] : 36,7 Centering Diameter [mm] : 65,0 Inner Diameter [mm] : 133,5 Bore Ø [mm] : 15,6

Suitable vehicles

AUDI

SEAT

SKODA

VW

Zastosowanie własne

OEM Part Number

AUDI: 8Z0615301B AUDI: 8Z0615301D SEAT: 1J0 615 301 D SEAT: 1J0 615 301 L SEAT: 1J0698301D SEAT: 6R0 615 301 SEAT: 6QD 615 301 SEAT: 6R0 615 301 C SKODA: 1J0 615 301 D SKODA: 1J0 615 301 L SKODA: 6R0 615 301 SKODA: 6QD 615 301 SKODA: 6R0 615 301 C VW: 1J0615301D VW: 1J0615301L VW: 1JE615301 VW: 5Z0615301B VW: 6RF 615 301 A VAG: 1J0 615 301 D VAG: 1J0 615 301 L VAG: 8Z0 615 301 B VAG: 8Z0 615 301 D VAG: 6R0 615 301 VAG: 6QD 615 301 VAG: 6R0 615 301 C VW (SVW): 6R0615301 BRILLIANCE: 3496025 SKODA (SVW): 6QD615301 SKODA (SVW): 6RD615301
